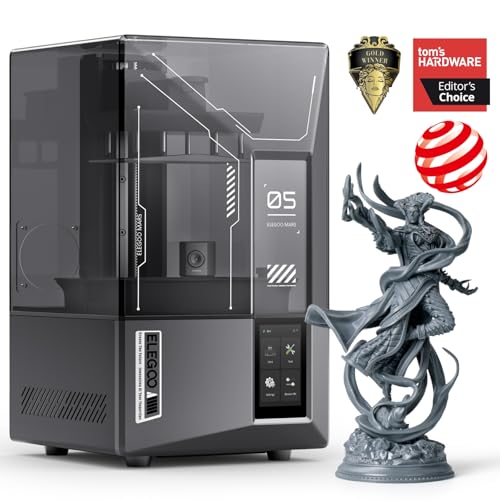

ELEGOO Mars 5 Ultra Resin 3D Printer: Long-Term Reliability Breakdown

The central mechanical feature of this printer is its motorized vat-tilting mechanism. On conventional resin units, such as older platforms like the elegoo mars 3, the build platform travels purely along a vertical Z-axis, pulling cured resin straight upward away from a stationary release film. This vertical lift creates substantial vacuum suction across the bottom of the vat, requiring cautious lift speeds and generous wait times to avoid tearing delicate support contacts or stretching the release film. The elegoo mars 5 ultra tilt release changes this dynamic by rocking the resin vat downward at an angle, peeling the film progressively off the newly cured layer from one side to the other.

By substituting an angled peel for direct vertical suction, peel forces are drastically reduced. This mechanical advantage allows the Z-axis to retract almost instantaneously, unlocking speeds up to 150 mm/h without pulling models from their supports. However, introducing an articulated vat assembly creates distinct points of mechanical wear. Instead of relying solely on rigid metal brackets holding a stationary vat securely against the chassis, the printer relies on motorized pivot arms, bearings, and precise alignment stops that actuate tens of thousands of times during an extended printing session.

When assessing overall elegoo mars 5 ultra reliability, buyers must recognize the engineering compromise at play. A moving vat introduces vibration and eventual joint slack if pivot bushings experience wear or if resin penetrates the mechanical drive linkages beneath the vat deck. While the chassis uses aluminum and polycarbonate to maintain rigidity, long-term precision demands that the tilting hinges remain completely free of mechanical play. Any lateral drift or tilt misalignment directly translates into layer shifting or microscopic banding along the Z-axis of finished prints.

Resin printing failures often cause severe collateral hardware damage, particularly when detached print fragments get pressed directly into the delicate monochrome LCD screen by the descending build plate. To counter this risk, the machine incorporates smart mechanical sensors designed for residue detection and leveling verification. This mechanical switch array measures abnormal resistance as the platform descends. If a cured piece of debris remains floating in the vat, the sensor flags the obstruction and stops Z-axis downward travel before the downward force fractures the glass underlying the 9K screen.

In addition to debris safeguards, the elegoo mars 5 ultra resin shortage sensor and leveling failure alarm provide critical preventative monitoring. Running out of resin midway through a tall print ruins the entire build and wastes hours of machine runtime. By alerting the operator before the vat runs dry, the system helps maintain continuous printing schedules. Comparable diagnostic features have gained popularity across modern resin machines, such as the monitoring setups reviewed on the anycubic photon p1, underscoring an industry-wide move toward sensor-assisted printing operations.

Complementing the mechanical switches is an internal AI camera focused on the print zone. The elegoo mars 5 ultra failure detection software scans the build environment in real time to spot empty build plates caused by bed adhesion failure, as well as severe model warping. While optical failure detection is an excellent safety net, users must maintain clear expectations regarding camera visibility. Heavily pigmented, opaque, or dark resins can obscure optical sightlines, and inadequate ambient chamber lighting can reduce the camera’s ability to differentiate fine warping from normal geometry during the earliest layers.

Miniature painters and tabletop sculptors scrutinize surface fidelity above almost every other printer metric. When configuring the elegoo mars 5 ultra for miniatures, the primary asset is the 7-inch 9K monochrome screen, which yields an XY resolution of 18 micrometers. An 18-micron pixel size provides sufficient optical clarity to eliminate visible pixel grid stepping on curved organic surfaces, anatomical musculature, facial expressions, and finely scaled textile textures. Crisp dimensional reproduction is further supported by the rigidity of the aluminum and polycarbonate frame.

While the optical panel delivers pristine definition, print speed directly influences the final surface finish. Operating at the maximum rating of 150 mm/h generates rapid hydrodynamic movement inside the resin tank as the vat tilts violently between exposures. If you are using highly viscous or specialized miniature resins, rapid vat motion can generate microscopic air bubbles or shear stress across fragile support tips. For competitive miniature work featuring micro-supports, operators often need to dial back the linear peel speed to ensure delicate weapon blades and antennae do not deflect under the turbulence of the tilting vat.

The structural rigidity of the unit is crucial for preventing layer stepping when the machine operates under high-load cycles. While enclosed consumer printers like the century carbon 2 focus on thermal management for specialized engineering filaments, a high-resolution resin chassis must prioritize vibration dampening. Weighing in at 8.8 kg, the chassis provides solid physical anchoring, ensuring the sudden mechanical shifts of the motorized tilt release do not translate into optical distortions or micro-vibrations across tiny miniatures.

Desktop resin printers require consistent maintenance routines to protect internal optical paths from corrosive chemical damage. For standard elegoo mars 5 ultra maintenance, keeping the tilting mechanics clean is just as vital as keeping the optical glass pristine. If liquid resin drips past the vat edges during tank removal or part harvesting, it can seep directly into the motorized pivot hinge or coat the mechanical residue sensor arms. Once photopolymer resin cures inside mechanical pivot joints, the tilting motor experiences severe resistance, leading to motor stall errors and false failure alarms.

Another unavoidable aspect of ownership is eventual optical servicing, specifically elegoo mars 5 ultra lcd replacement. Monochrome LCD panels degrade over hundreds of hours of direct ultraviolet light transmission, gradually losing contrast and light uniformity. Because the vat on this machine is integrated into an active tilting cradle rather than sitting on a flat static bed, swapping out the LCD screen requires navigating the moving bracket hardware. The listing does not specify the step-by-step disassembly complexity or whether protective tempered glass covers come pre-installed over the screen, meaning buyers must exercise extreme care during tear-downs to avoid dislodging internal sensor wires.

Just as mechanical upkeep on filament hardware like the elegoo neptune 3 pro revolves around lead screws and belt tensioning, this resin machine demands strict vigilance regarding release film integrity. Because the tilt peel mechanism exerts localized peeling stress along the edge where the vat articulates, the release film experiences repetitive flexing along that specific boundary. Users must regularly inspect the film for clouding, pinholes, or localized stretching, especially when running the machine at maximum operational speeds across long production runs.
