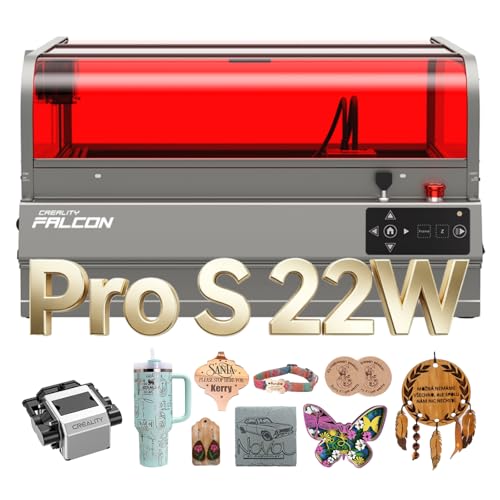

Creality Falcon2 22W Review: Critical Safety and Durability Breakdown

The primary engineering highlight of this workstation is its integrated Class 1 housing. Traditional open gantry lasers require operators and anyone entering the workshop to wear specialized protective goggles matching the 450nm blue wavelength. The falcon2 22w laser enclosure eliminates this baseline danger by enclosing the active cutting area inside a full metal frame capped with a transparent laser-filtering shield. The cover is engineered with an active interlock sensor that immediately pauses laser emission if the lid is lifted during a job. This containment prevents stray beam reflections from escaping the enclosure and keeps hazardous cutting emissions concentrated within the frame rather than diffusing into room air.

Beyond optical isolation, Creality built an extensive array of active safety mechanisms directly into the machine firmware and electrical architecture. The creality falcon2 22w safety features include an internal optical flame detector positioned near the toolhead to spot ignition events before a flare-up spreads to the gantry belts. If excessive flame is recognized, the machine halts beam output and sounds an audible alert. A front-mounted emergency stop button provides a tactile mechanical kill switch for immediate manual intervention, while a dedicated physical key safety lock prevents unauthorized operation in shared maker environments. Dual wire limit switches on both the X and Y axes prevent the carriage from hard-crashing into the structural frame, minimizing wear on the stepper motors and drive belts.

Containment also dictates how well a laser workstation evacuates volatile organic compounds and smoke particles generated during heavy cuts. While the enclosed structure shields the operator from dangerous radiation, enclosed diode systems generate massive amounts of smoke that can quickly cloud the laser lens if exhaust airflow is restricted. Similar considerations arise when evaluating competing enclosed desktop cutters such as the toocaa l2 20w laser engraver and cutter, where internal exhaust efficiency determines whether the viewing lid stays clear or becomes coated in sticky wood resin. Operators must ensure their ventilation hose is vented outdoors to maintain healthy indoor air quality.

Long-term mechanical stability is where many consumer-grade laser cutters fall short after several hundred hours of heat cycling. The falcon2 22w build quality benefits significantly from an all-metal skeleton that supports its 49.3-pound mass. When operating at top engraving speeds of up to 600mm/s, the substantial frame dampens directional vibrations that otherwise create ghosting artifacts or wavy engraving lines. The rigid base measuring 26 by 22 inches ensures that the linear guide rails remain square over extended runtimes, preventing the progressive skewing common in lightweight aluminum extrusion rigs.

When assessing creality falcon2 22w reliability, the diode laser module itself represents the most critical component. Generating 22W of true optical power requires combining multiple smaller diode emitters through internal optical prisms. This concentration creates substantial thermal load inside the toolhead housing. The 120W electrical intake means heat dissipation must be continuous and aggressive. If internal cooling fails or becomes clogged with airborne debris, the optical diodes suffer thermal degradation, resulting in a permanent drop in cutting penetration. Keeping the intake grates clean and monitoring the integrated air assist flow is mandatory to ensure the laser emitter reaches its expected operational lifespan.

Mechanical drive components inside an enclosed laser require more frequent vigilance than those on open frames because cutting residue is trapped within the chassis. The motorized Z-axis lead screw, drive belts, and linear guide rods sit directly in the path of vaporized wood sap and acrylic particulates. Over months of heavy usage, uncleaned lead screws can bind, causing the motorized auto-focus carriage to skip steps. Investing time in routine hardware lubrication and tension adjustments is the only way to preserve the factory-level motion precision over years of production.

The core selling point for this unit is its optical cutting performance. Creality rates the machine for one-pass cuts through 15mm basswood, 10mm black acrylic, and 0.1mm thin metal sheets, with cutting feed rates reaching up to 500mm/s depending on material density. Reaching these creality falcon2 22w cutting capacity benchmarks in real shop conditions requires proper air assist tuning and precise focal calibration. The factory-included air assist pump plays a vital role here: by blowing a concentrated stream of air directly into the kerf, it instantly clears carbonized char and vaporized resin, allowing the 22W beam to penetrate deeper into organic fibers without torching the top surface.

Material physics dictates what this diode can and cannot process. The 450nm blue laser wavelength easily cuts dense, dark, and organic materials including basswood, plywood, leather, and opaque black acrylic. However, blue diode light passes directly through clear, white, and translucent acrylics without heating the material, meaning those specific plastics cannot be cut regardless of power settings. Buyers looking to run high-volume acrylic fabrication often look toward commercial CO2 units like the glo forge laser cutter pro, which utilize longer infrared wavelengths that interact natively with transparent media. For wood, leather, and dark plastics, however, the 22W diode provides exceptional speed and edge quality.

Creality pairs this optical output with an intelligent Auto Cut Through path compensation algorithm. As the laser passes through thick materials, the system adjusts power concentration and Z-height parameters to maintain consistent kerf width from the top surface down through the bottom exit cut. Without this compensation, deep cuts often exhibit an inward taper due to the natural hourglass profile of a focused laser beam. When dialed in correctly, the machine produces clean vertical edges on thick hobby plywood that require minimal sanding before joinery.

Achieving consistent placement on irregular workpieces relies on the integrated overhead camera mounted in the central roof shield. Connected to the control computer via USB, the camera provides a real-time top-down preview of the work area, facilitating batch positioning of multiple small items like keychains or coasters. While this feature drastically reduces setup time compared to manual framing, optical accuracy depends on proper lens maintenance. Because the camera is housed inside the enclosed cutting chamber, fine smoke particles naturally deposit onto the camera lens over time, which can blur the preview image and degrade alignment precision unless wiped clean regularly.

Automated focusing is handled via the falcon2 22w auto focus system, which drives the toolhead along a motorized vertical Z-axis to lock in the exact focal plane. Unlike manual systems that require positioning a physical acrylic kickstand or metal spacer block under the lens, the electronic system calculates material height to ensure optimal beam convergence. However, operators must keep the optical protection lens clean. Diode lenses that accumulate resin will absorb laser energy rather than transmitting it, leading to thermal shock that can crack the protective lens cover during intensive high-power jobs.

Daily workshop upkeep is streamlined by the slide-out debris drawer positioned beneath the cutting grate. Instead of vacuuming charred debris out from between fragile linear rails, users simply slide the metal tray out from the front of the unit and dump waste into the trash. A disciplined creality falcon2 22w maintenance routine consists of emptying this tray after every extended cutting session, inspecting the internal exhaust fan for lint accumulation, wiping down the linear rods, and cleaning both the camera and laser exit glass with isopropyl alcohol wipes. Portable alternatives like the artilume t1 foldable laser engraver offer easier transport, but lack the structural rigidity and built-in debris management that makes this 49-pound enclosed platform suited for stationary fabrication.
