Black+Decker BDCMTR Matrix Router Review: Real-World Limits and Reliability

The defining technical factor of any rotary cutting tool is rotational velocity, and understanding the black and decker matrix router rpm thresholds is critical before attempting any cut. When connected to a 20-volt Max power handle, the attachment tops out at 9,000 RPM. On a 12-volt Max handle such as the BDCDMT112, the ceiling drops to 6,800 RPM, while the corded 4-amp BDEDMT base provides up to 7,300 RPM. Dedicated palm routers and full-sized plunge routers operate at speeds between 20,000 and 35,000 RPM. This substantial speed disparity dramatically alters how the cutting bit engages with wood fibers.

Because the cutter head rotates at a fraction of standard routing speeds, material removal happens much more slowly. Router bits rely on peripheral velocity to slice cleanly through timber grain without tearing. At 9,000 RPM, the bit takes fewer bites per linear inch of travel, meaning a fast feed rate will cause chattering, tear-out, and motor bogging. To achieve a clean edge, you must guide the tool slowly, taking multiple shallow passes rather than attempting to hog out material in a single stroke. This slower feed requirement represents one of the primary matrix router attachment limitations for busy workshops.

Motor heat and power head strain are additional factors to monitor during extended sessions. Running a cordless drill motor at sustained maximum output creates thermal stress inside the handle assembly. While the variable-speed trigger gives you tactile control over the operation, pushing the attachment through dense hardwoods like oak or hard maple will quickly tax the motor. The tool is far better suited to softwoods, plywood, medium-density fiberboard, and thin synthetic boards where low rotational speeds still produce acceptable surface finishes.

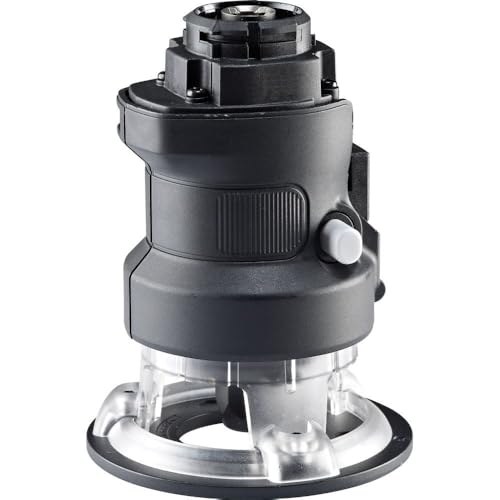

The physical structure of the black and decker matrix router attachment is constructed from a lightweight plastic blend, keeping the overall attachment weight down to 1.3 pounds. While this low weight ensures the tool remains maneuverable when combined with a battery handle, the composite construction behaves differently than traditional cast aluminum router bases. The fixed base provides a flat contact surface, but the inherent flexibility of composite plastic requires a steady, even downward posture to avoid tilting during a cut.

For vertical positioning, the black and decker matrix router depth adjustment relies on a Quick Adjust release button. This mechanism allows you to slide the motor housing relative to the base plate to establish cutting depths up to a maximum of 1 inch. While rapid adjustments are convenient for rough sizing, the mechanism lacks the micro-metric threaded collars found on standalone trim routers. Establishing an exact, fractional depth requires test cuts on scrap lumber and careful manual alignment before locking the base into place.

Bit installation is streamlined through a built-in spindle lock button, allowing single-wrench bit changes rather than requiring opposing open-ended wrenches. This feature simplifies workflow when switching between profile bits. However, the listing does not specify the collet diameter or whether alternative collet sizes are supported. Ensuring that your router bit shanks properly match the chuck assembly before tightening is essential for both operator safety and mechanical concentricity.

Where this modular attachment genuinely excels is in light, targeted architectural and cabinetry prep work. Utilizing the matrix router attachment for hinge routing is one of its most practical applications. Recessing a standard butt hinge requires shallow, controlled material removal, typically less than an eighth of an inch deep. Because hinge mortises are shallow and usually cut into softwood door jambs, the 9,000 RPM maximum speed provides sufficient power to clear out the mortise perimeter cleanly without overwhelming the motor.

Similarly, executing black and decker matrix router edge trimming on modest decorative trim pieces, small picture frames, or craft shelving works well within the tool’s functional envelope. Rounding over a sharp corner with a small-radius bit or cutting a shallow chamfer along the perimeter of a board does not exert extreme lateral loads on the plastic neck of the attachment. The compact footprint of the base allows you to balance the tool securely along narrow edges where a bulky three-horsepower router would feel top-heavy and cumbersome.

Conversely, the tool is not engineered for structural joinery tasks such as cutting deep dados, cutting mortise-and-tenon joints, or flattening slabs. Attempting heavy material removal risks stalling the motor, overheating the internal gears, and deflecting the plastic base, which results in wavy, uneven cuts. Treating this attachment as a precision edge-dressing accessory rather than a heavy production machine ensures consistent, repeatable outcomes on domestic repair tasks.

Assessing overall bdcmtr router attachment reliability requires evaluating how plastic mechanical components fare under repeated rotary vibration. The internal drive coupler meshes directly with the output shaft of the Matrix power unit. Under sensible operational loads, the internal gearing transfers torque reliably. However, because the base and housing rely heavily on composite plastic, dropping the tool onto concrete or forcing a dull bit through knotted timber can crack the housing or strip the depth adjustment locking teeth.

The tool is backed by the standard Black+Decker 2 Year Limited Warranty, which covers defects in material or workmanship from the date of purchase. For a consumer-tier attachment, a two-year protection window offers reasonable reassurance against premature mechanical failure. Just as consumers evaluate long-term utility across home appliances like the black decker dustbuster, buyers of the Matrix system should understand that warranty coverage protects against manufacturing faults rather than normal wear, accidental drops, or motor burnout caused by aggressive over-cutting.

To preserve the attachment’s lifespan, keeping the depth adjustment tracks free of compacted sawdust is vital. Fine wood dust can accumulate inside the quick-release mechanism, leading to sticky depth adjustments and uneven locking pressure. Blowing out the base assembly with compressed air after routing sessions ensures the quick-release button continues to seat firmly, preserving cut accuracy across multiple seasons of home maintenance.
