Is the E3D V6 Bowden Hotend Still Worth It? Reliability Review

Thermal management is the defining operational characteristic of any all-metal hotend. In this e3d v6 12v all metal configuration, the heat break creates a steep thermal gradient between the molten plastic in the heater block and the cold filament entering the heatsink. When operating properly, the blue anodized aluminum heatsink dissipates excess thermal energy rapidly into the ambient air. This separation prevents the filament from softening prematurely before reaching the internal melt pool. Achieving this thermal transition is critical for e3d v6 high temp printing where engineering polymers require elevated sustained temperatures that would degrade standard PTFE-lined components.

However, e3d v6 heat creep remains a serious failure mode when airflow across the heatsink drops or when ambient enclosure temperatures rise excessively. If thermal energy migrates upward into the thin-walled heat break, the 3mm filament swells inside the transition zone. Because 3mm filament contains significantly more mass and cross-sectional surface area than 1.75mm lines, thermal expansion creates substantial mechanical resistance against the interior walls. When dealing with complex builds or high-load workshop gear, equipment must operate reliably under sustained duty cycles, much like the thermal shielding expected from a hobart pro series welding helmet during rigorous fabrication tasks. Maintaining continuous, uninhibited airflow across the heatsink fan is mandatory to keep the cold zone properly cooled.

Retraction configuration also directly influences thermal performance. In Bowden arrangements, users often compensate for tube elasticity by dialing in aggressive retraction distances. Pulling molten polymer past the heat break into the cooling zone allows the material to freeze against the metal wall, causing instant blockage. When running this hotend, retraction distances must be kept as short as practical to prevent molten filament from entering the cold heatsink section. Fine-tuning these parameters requires careful slicing preparation and stable fan voltage supply.

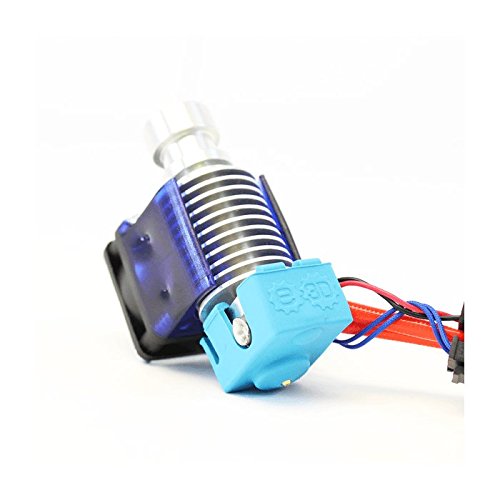

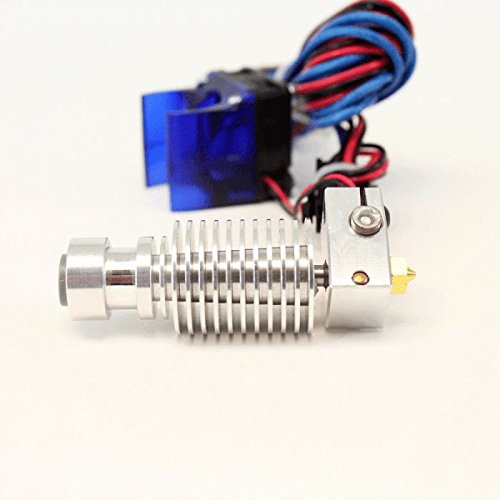

Executing an accurate e3d v6 bowden setup requires strict adherence to mechanical tolerances during assembly. The Bowden tube configuration physically separates the heavy stepper motor from the moving carriage, reducing toolhead weight to enable faster directional changes without excessive ringing. However, this mechanical decoupling places increased demand on the feed path. Because this specific unit is an e3d v6 3mm bowden kit, the tubing and pneumatic fittings must guide larger filament without introducing excess play, which would otherwise amplify hysteresis and stringing throughout the print.

A frequent failure point during installation is improper mechanical mating between the nozzle, the heat break, and the heater block. To prevent e3d v6 bowden clogging and plastic leakage along the threads, the assembly must be tightened while heated to target operating temperatures. Performing a cold assembly invariably leaves microscopic gaps between the rear of the nozzle and the lower face of the heat break due to thermal expansion coefficients. Once plastic flows under pressure, molten material migrates into the threading, chars, and forms intermittent clogs that degrade extrusion consistency.

Filament control requires diligent maintenance throughout the lifecycle of the Bowden tube. The pneumatic couplings must grip the tube securely to prevent axial slippage during rapid retract and un-retract moves. If the tube shifts even a fraction of a millimeter inside the hotend collar, an internal pocket forms where plastic can pool and solidify. Just as regular maintenance keeps cordless appliances like the shark powerboost cordless operating at peak suction, keeping your filament path cleanly cut, properly seated, and free of debris ensures uninterrupted filament delivery.

Evaluating an e3d v6 vs clone comparison reveals substantial differences in internal manufacturing precision. Third-party replicas frequently cut production costs on the internal bore of the heat break, leaving microscopic machining ridges or inconsistent concentricity. In an all-metal design, these micro-grooves catch expanding polymer, resulting in persistent jams that seem like slicing errors. The genuine E3D manufacturing standard ensures that internal surfaces are smooth and accurately sized, minimizing frictional resistance against sliding filament.

The mechanical rigidity of the all-metal assembly provides notable structural durability. The metal construction handles external mechanical stress far better than hybrid plastic components, ensuring that the heater block remains rigid relative to the heatsink. However, the thin neck of the heat break is deliberately engineered with minimal wall thickness to restrict conductive heat transfer. This makes the component physically delicate; applying torque to the nozzle without properly counter-holding the heater block with a wrench will bend or shear the neck entirely.

Reliability also depends heavily on the electrical matching of the system. This kit provides a 12V heating cartridge, meaning it is meant for 12V control boards and power supplies. Installing a 12V heater into a 24V printer mainboard will overpower the cartridge and create an immediate electrical hazard, while running it on insufficient power results in slow heat-up times and thermal runaway errors. Verifying your printer’s native voltage output before installation is essential to maintaining hardware integrity.

Integrating this hotend into an existing printer requires precise updates to firmware and machine control parameters. The e3d v6 bowden specs demand correct thermistor sensor selection within Marlin, Klipper, or RepRapFirmware configurations. Setting an incorrect sensor type in firmware will generate inaccurate temperature readings, causing your heater block to operate dozens of degrees above or below the requested target, directly degrading print quality and risking thermal damage.

Once the sensor is configured, conducting a complete PID auto-tune sequence is mandatory. Because the thermal mass of the aluminum heater block and cartridge combination differs from stock hotends, the control board needs to calculate precise pulse-width modulation cycles to maintain a stable temperature. Uncalibrated heating loops lead to temperature oscillations that manifest as visible horizontal banding along the outer walls of printed parts. Automation systems in domestic hardware, such as the navigation algorithms found in the shark power detect 2 in 1 robot, rely on accurate continuous sensor feedback; your 3D printer controller requires the exact same level of calibrated thermal feedback to prevent print failures.

File preparation in your slicer must also reflect the physical capabilities of this hardware. The listing notes support for standard formats including STL, OBJ, and GCODE toolpaths. When generating toolpaths, extrusion width, volumetric flow limits, and layer height parameters must be balanced against the heating capacity of the 12V block. Pushing 3mm filament through a small nozzle at elevated speeds can exceed the melting capacity of the heater block, leading to motor skipping and under-extrusion.
