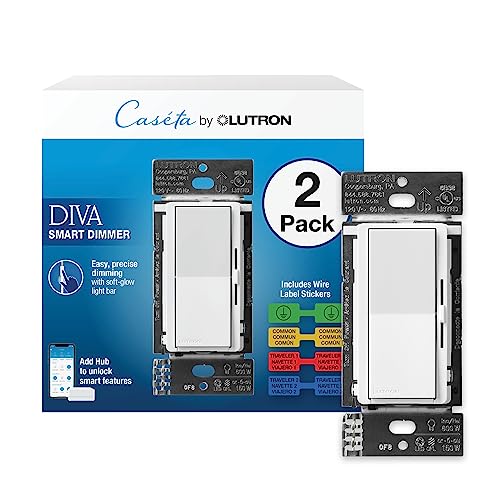

Lutron Diva Smart Dimmer Switch: Reliability, Wiring, and Flaws

The primary engineering feature of this hardware is its ability to operate without a neutral conductor. In standard smart switches, the internal electronics draw continuous operating power from the circuit by bridging the energized line wire to the neutral wire. The diva smart dimmer switch no neutral design solves this by leaking a minute trickle of current through the lighting load itself, even when the switch is toggled off. This design is what allows it to function in vintage homes where electricians never pulled neutral wires into wall boxes, saving you from expensive electrical alterations.

However, trickling power through the load creates specific electrical constraints. If the connected bulbs do not provide sufficient resistive load, or if their internal drivers are sensitive to phantom current, you can encounter ghosting, where LED bulbs emit a faint glow in complete darkness. While the listing notes compatibility with up to 150 watts of dimmable LED fixtures or 600 watts of incandescent and halogen bulbs, it explicitly warns that the unit is not rated for low-voltage lighting applications. Attempting to manage magnetic or electronic low-voltage transformers used in landscape or track setups can lead to erratic behavior or component failure, because those transformers cannot properly negotiate the dimmer’s power-siphoning method.

Physical lutron diva smart dimmer wiring is relatively straightforward thanks to the included wire label stickers, but space inside the junction box remains a critical factor. The switch housing includes wire leads and screw terminals rated for a 1.25 A current limit. Operating within an ambient temperature threshold of 32 °F to 104 °F, the switch requires adequate heat dissipation, particularly when installing two units side by side in a multi-gang box where physical derating rules apply to the metal mounting tabs.

Solid-state lighting behaves fundamentally differently from traditional resistive filaments, making load management vital. Reviewing the diva smart dimmer switch specs reveals a strict 150-watt maximum for LED fixtures compared to 600 watts for legacy incandescent bulbs. Because modern LEDs draw significantly less wattage, a 150-watt ceiling might sound generous, but inrush current from multiple electronic drivers on a single circuit can place severe strain on the internal triac components. Calculating the total wattage of all fixtures on the switch run is essential before mounting the hardware.

When selecting fixtures for this diva smart dimmer switch for led lights, driver quality plays a massive role in overall reliability. Lower-grade LED drivers can exhibit audible buzzing or visible strobe-like pulsing at the lower end of the dimming range. The Diva dimmer combats this with a dedicated mechanical slider adjacent to the paddle, giving you direct control over the dimming threshold at the wall. This slider sets a fixed lighting preset, ensuring that whenever you flip the rocker on, the lighting returns smoothly to your preferred illumination level rather than jumping to full brightness or failing to strike at low voltage.

For homes with advanced multi-zone lighting or alternative smart platforms, matching switches to fixture types requires careful planning. Those comparing broader ecosystem alternatives might review options like the tapo s515d kit to understand how different manufacturers handle line-level solid-state dimming. Ensuring caseta diva dimmer compatibility with your specific bulb models prevents the frustration of intermittent flickering and avoids the need to replace entire light fixtures after the wall controls are already secured in place.

The most crucial buying distinction to understand is that this switch possesses zero direct Wi-Fi or Bluetooth capabilities. Packaging prominently features the label diva smart dimmer switch hub required, which means that without an external Lutron Smart Hub (model L-BDG2-WH), the units function purely as mechanical dimmers. You will retain manual on, off, and dimming control at the wall paddle, but mobile app schedules, remote access, and voice automation will be entirely inaccessible until the bridge is plugged into your router.

While an external bridge represents an extra physical device on your home network, it delivers superior wireless reliability compared to standard Wi-Fi smart switches. The hub communicates with the wall dimmers on a dedicated, low-frequency proprietary band rather than congesting your 2.4 GHz home Wi-Fi network. This architecture ensures that commands trigger instantly without local network latency, and changes to your home network password will not kick your light switches offline. Buyers starting from scratch may want to examine a dedicated package such as the lutron caseta starter kit to secure the necessary bridge hardware alongside their initial switches.

Once linked to the bridge, the dimmer integrates deeply with platforms like Apple Home, Amazon Alexa, Google Assistant, Ring, and Sonos. The Caseta app unlocks automation features such as Smart Away, which randomly turns lights on and off during evening hours to simulate an occupied home while you are traveling. Voice control through linked assistants responds without the sluggish lag often seen on hubless switches, but buyers must accept that losing power to the central bridge temporarily severs all smart automations until network communication is restored.

Controlling a single lighting load from multiple entry points introduces another layer of wiring complexity. Implementing a lutron diva smart dimmer switch 3 way configuration can be tackled using two distinct physical methods. The traditional hardwired path involves pairing the Diva smart dimmer with an approved secondary mechanical switch or a dedicated accessory control. For installations that require a matching paddle look at both locations, the dimmer supports three-way circuits when wired in tandem with the lutron claro smart switch accessory, maintaining consistent aesthetic lines across your home’s wallplates.

The alternative method bypasses complex multi-gang traveler wiring altogether by using wireless remotes. Pairing the wall unit with a diva smart dimmer pico remote (model PJ2-3BRL-GWH-L01) enables multi-location switching without cutting new holes in drywall or fishing copper wire through wall cavities. By using a specialized wall-mount bracket (model PICO-WBX-ADAPT), a battery-powered Pico remote can be attached flush against drywall inside a standard wallplate opening, looking and operating indistinguishably from a real hardwired switch to anyone walking past.

The trade-off with these multi-way expansion options comes down to packaging omissions. The two-pack supplies only the primary Diva dimmer units and wire labels; every single accessory required for multi-location switching—whether a Claro accessory switch, a Pico remote, a wall-mount bracket, or coordinating decorator wallplates—is sold separately. Shoppers accustomed to complete modular kits, such as those pairing a detached button like the hue smart button for surface control, need to factor these missing accessories into their overall project scope before dismantling existing multi-way switches.
